WindSoleil 15.19kW Solar Power Off-Grid System

Sale Price:$27,500.00 Original Price:$29,000.00

Great for Buildings, Large Stores, Warehouses, Large Houses, Ranches, Farms, Greenhouses, Large Homesteads, this Solar Off-Grid Kit will give you all the power you need. [Batteries Included]

Quantity:
Add To Cart

Power your Building, Warehouse, Store, Large House, Ranch, Large Homestead, Farm, or any structure with this Off-Grid Solar System. You can provide power for all of your everyday appliances: refrigerator, microwave, lights, washing machine, portable computers, stereos, etc. This off-grid kit has everything you need to turn the suns power into usable electricity including batteries to store the electricity you're not using. This system helps you get off grid, provide your own electricity, and stop burning fossil fuels. Changing Sunlight to usable energy is free and doesn't pollute the environment with a high efficient solar power system like this. All of our off grid kits are easy to install and come with detailed instructions. MORE INFO BELOW:

System Features:

  • Great for Commercial Buildings, Large Stores, Warehouses, Houses, Ranches, Farms, Greenhouses, & Homesteads
  • Provides power to meet the need of Refrigerator, Washing Machine, Lighting, Portable Computers, Appliances, Instruments, Electronics, etc.
  • Batteries are included so you can store power
  • Hybrid Solar Inverter has Controller built in
  • Includes Racking System (Can be customized to suit your needs)
  • Long Life span of System can reach 20-25 Years
  • 5-Years Free Warranty
  • CE & ROHS Certification
  • ISO9001:2000 Quality Certification

System Includes:

QTY ITEM TYPE
49
310-Watt Renesola JC310M-24/Ab Virtus II Poly Solar Panel Solar Panel
1
Pure Sine Wave 15kW/120V Inverter Inverter
1
MPPT 120V/100A Charge Controller Controller
1
IronRidge XR100 Solar Racking Kit *(Custom Fitted to your needs) Racking
40
TF 12V/200AH Fully Sealed Solar Power Lead Acid Battery [Gel Battery Option] Battery
2*[100M]
100-Meters 12mm2 Black & Red Solar Cable Cables
2
Solar 12mm2 Battery Connector Cable Cables
1
PV Combiner H6T-120V Combiner Box

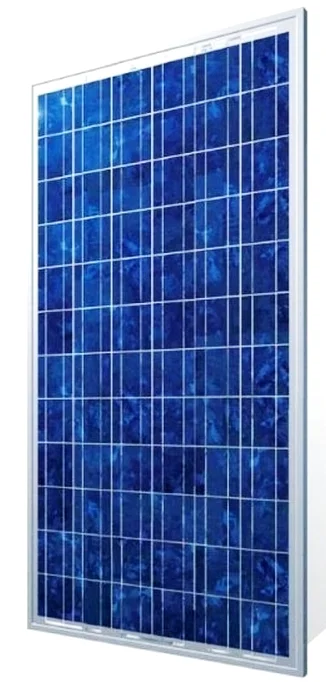

Solar Panel Specifications:

Maximum Power
310 Watts
Power Tolerance
0~+5
Module Efficiency
16.5%
Maximum Power Current (lmp)
6.80A
Maximum Power Voltage (Vmp)
37.0V
Short Circuit Current (lsc)
8.80A
Open Circuit Voltage (Voc)
45.0V
*Cell Type
156x156mm Monocrystalline
Glass
High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminum Alloy
Junction Box
IP65/67 Rated with Bypass Diodes
Operating Temperature
-40°C~+85°C
Dimension
1956 x 992 x 40mm
Weight
27kg

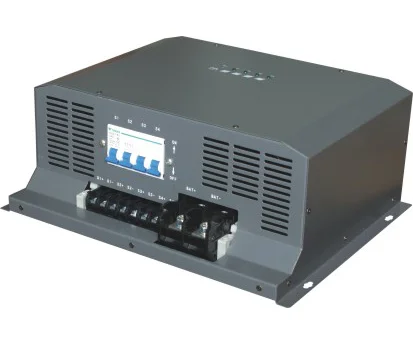

Pure Sine Wave Inverter + Controller Specifications:

Inverter Power
15kw/120V
MPPT Controller
100A/120V
Charging Efficiency
90%-95%
With AC Charger Built-In
120V, 220V, 230V, 240V (optional)
Product Size
590 x 470 x 730mm

Battery Specifications:

Capacity
12V/200AH
Type
Lead Acid Battery (If Need Gel, Let us Know)
Service Life
6-7 Years
Connect Way
10 Pieces in series as a string
Size
522 x 238 x 218mm

If you have any questions about this system, please feel free to call us at (765) 233-2419 or email us at info@windsoleil.com
