WindSoleil 1.04kW Solar Power Off-Grid System


Great for Cabins, Tiny Houses, or Cottages, this Solar Off-Grid Kit will give you all the power you need. [Batteries Included]

WindSoleil 1.04kW Solar Power Off-Grid System

1kw-Off-Grid Solar.jpg
Racking system #23darker.JPG
Rackign System.jpg
solar cables.jpg
PV Combiner Box.jpg
Solar Cable Connectors.jpg
1kw-Off-Grid Solar.jpg
Racking system #23darker.JPG
Rackign System.jpg
solar cables.jpg
PV Combiner Box.jpg
Solar Cable Connectors.jpg
sale

WindSoleil 1.04kW Solar Power Off-Grid System

Sale Price:$4,700.00 Original Price:$5,200.00

Great for Cabins, Tiny Houses, or Cottages, this Solar Off-Grid Kit will give you all the power you need. [Batteries Included]

Solar Panel Type:
Quantity:
Add To Cart

Power your Tiny Home, Cottage, Cabin, RV, or Small house with this Off-Grid Solar System. You can provide power for your small refrigerator, lights, portable computers, stereos, etc. This off-grid kit has everything you need to turn the suns power into usable electricity including batteries to store the electricity you are not using.  This Alternative Energy Solar Power System helps you get off the grid, provide your own electricity, and stop burning fossil fuels. Changing sunlight to usable energy is free and doesn’t pollute the environment, with a highly efficient Solar power system like this one. All our off-grid kit are easy to install and come with detailed instructions. MORE INFO BELOW:

System Features:

  • Great for Cabins, Tiny Homes, Cottages, Small Homesteads, Pre-Fab Homes
  • Provides power to meet the need of small Refrigerators, Washing Machines, Lighting Portable Computers, Appliances, Instruments, Electronics, etc.
  • Batteries are included so you can store power
  • Hybrid Solar Inverter has Controller built
  • Includes Racking System (Can be customized to suit your needs)
  • Long Life span of System can reach 20-25 Years
  • 5-Years Free Warranty
  • CE & ROHS Certification
  • ISO9001:2000 Quality Certification
  • Large Power, High Efficiency, and Low Volume
  • Durable Construction, built using durable materials

System Includes:

QTY ITEM TYPE
4
260-Watt Renesola JC260M-24/Bbh Virtus II Mono Solar Panel Solar Panel
1

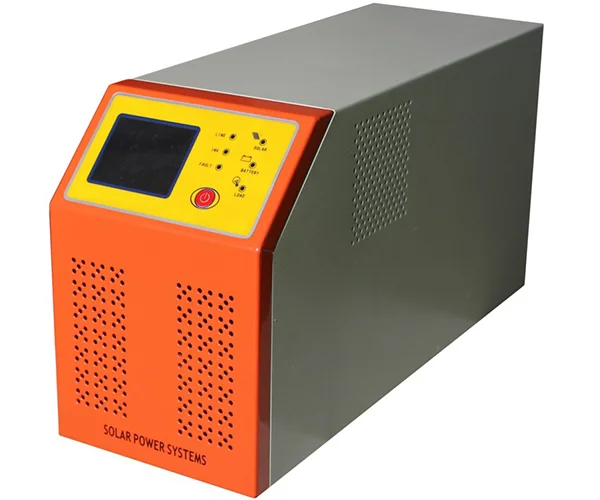

Hybrid Solar Inverter SC1kw/24v with MPPT Built-In Controller Inverter + Controller
1
IronRidge XR100 Solar Racking Kit *(Custom Fitted to your needs) Racking
2

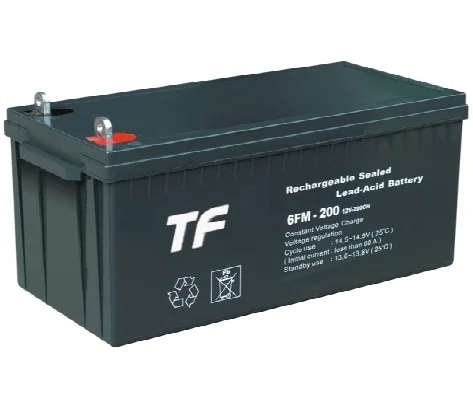

TF 12V/200AH Fully Sealed Solar Power Lead Acid Battery Battery
1*[100M]

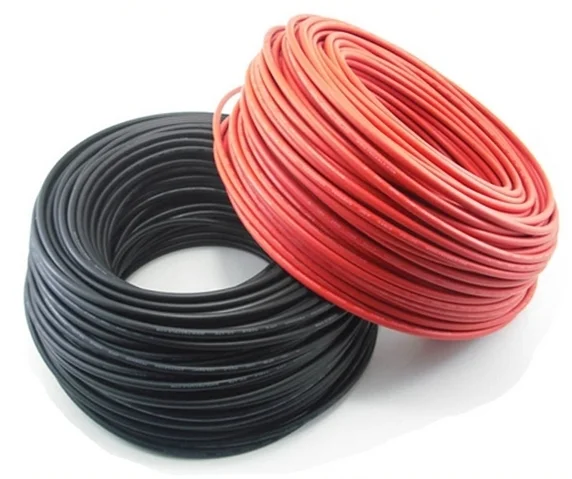

100-Meters 4mm2 Black & Red Solar Cable Cables
2

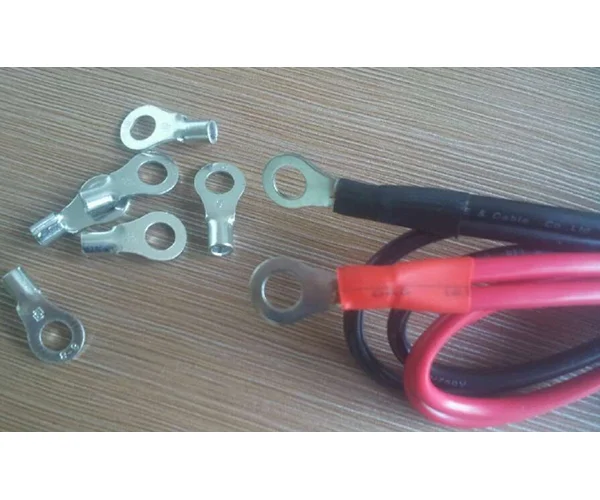

Solar 4mm2 Battery Connector Cable Cables
1

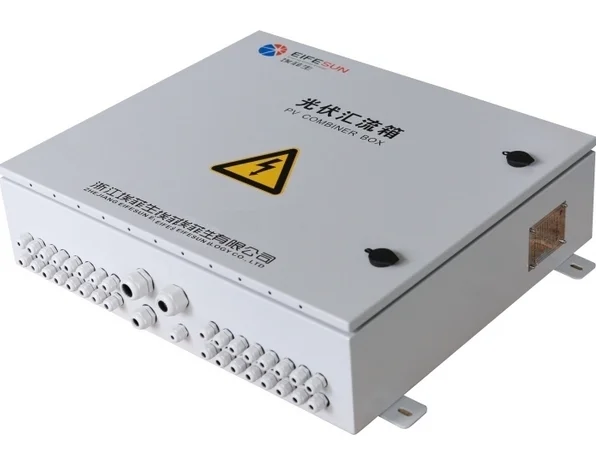

PV Combiner H4T-24V Combiner Box

Solar Panel Specifications:

Maximum Power
260 Watts
Power Tolerance
0~+5
Module Efficiency
16.5%
Maximum Power Current (lmp)
8.55A
Maximum Power Voltage (Vmp)
30.4V
Short Circuit Current (lsc)
9.10A
Open Circuit Voltage (Voc)
37.7V
*Cell Type
156x156mm Monocrystalline
Glass
High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminum Alloy
Junction Box
IP65/67 Rated with Bypass Diodes
Operating Temperature
-40°C~+85°C
Dimension
1640 x 992 x 40mm
Weight
19kg

Hybrid Inverter w/ Controller Specifications:

Inverter Power
SC1kw/24V
MPPT Controller
40A/24V
Charging Efficiency
90%-95%
With AC Charger Built-In
110V, 120V, 220V, 230V, 240V (optional)
Product Size
450 x 220 x 260mm

Battery Specifications:

Capacity
12V/200AH
Type
Lead Acid Battery (If Need Gel, Let us Know)
Service Life
6-7 Years
Connect Way
2 Pieces in series as a string
Size
522 x 238 x 218mm

If you have any questions about this system, please feel free to call us at (765) 233-2419 or email us at info@windsoleil.com
