WindSoleil 15.19kW Solar Power Off-Grid System
Great for Buildings, Large Stores, Warehouses, Large Houses, Ranches, Farms, Greenhouses, Large Homesteads, this Solar Off-Grid Kit will give you all the power you need. [Batteries Included]
Great for Buildings, Large Stores, Warehouses, Large Houses, Ranches, Farms, Greenhouses, Large Homesteads, this Solar Off-Grid Kit will give you all the power you need. [Batteries Included]
Great for Buildings, Large Stores, Warehouses, Large Houses, Ranches, Farms, Greenhouses, Large Homesteads, this Solar Off-Grid Kit will give you all the power you need. [Batteries Included]
Power your Building, Warehouse, Store, Large House, Ranch, Large Homestead, Farm, or any structure with this Off-Grid Solar System. You can provide power for all of your everyday appliances: refrigerator, microwave, lights, washing machine, portable computers, stereos, etc. This off-grid kit has everything you need to turn the suns power into usable electricity including batteries to store the electricity you're not using. This system helps you get off grid, provide your own electricity, and stop burning fossil fuels. Changing Sunlight to usable energy is free and doesn't pollute the environment with a high efficient solar power system like this. All of our off grid kits are easy to install and come with detailed instructions. MORE INFO BELOW:
System Features:
- Great for Commercial Buildings, Large Stores, Warehouses, Houses, Ranches, Farms, Greenhouses, & Homesteads
- Provides power to meet the need of Refrigerator, Washing Machine, Lighting, Portable Computers, Appliances, Instruments, Electronics, etc.
- Batteries are included so you can store power
- Hybrid Solar Inverter has Controller built in
- Includes Racking System (Can be customized to suit your needs)
- Long Life span of System can reach 20-25 Years
- 5-Years Free Warranty
- CE & ROHS Certification
- ISO9001:2000 Quality Certification

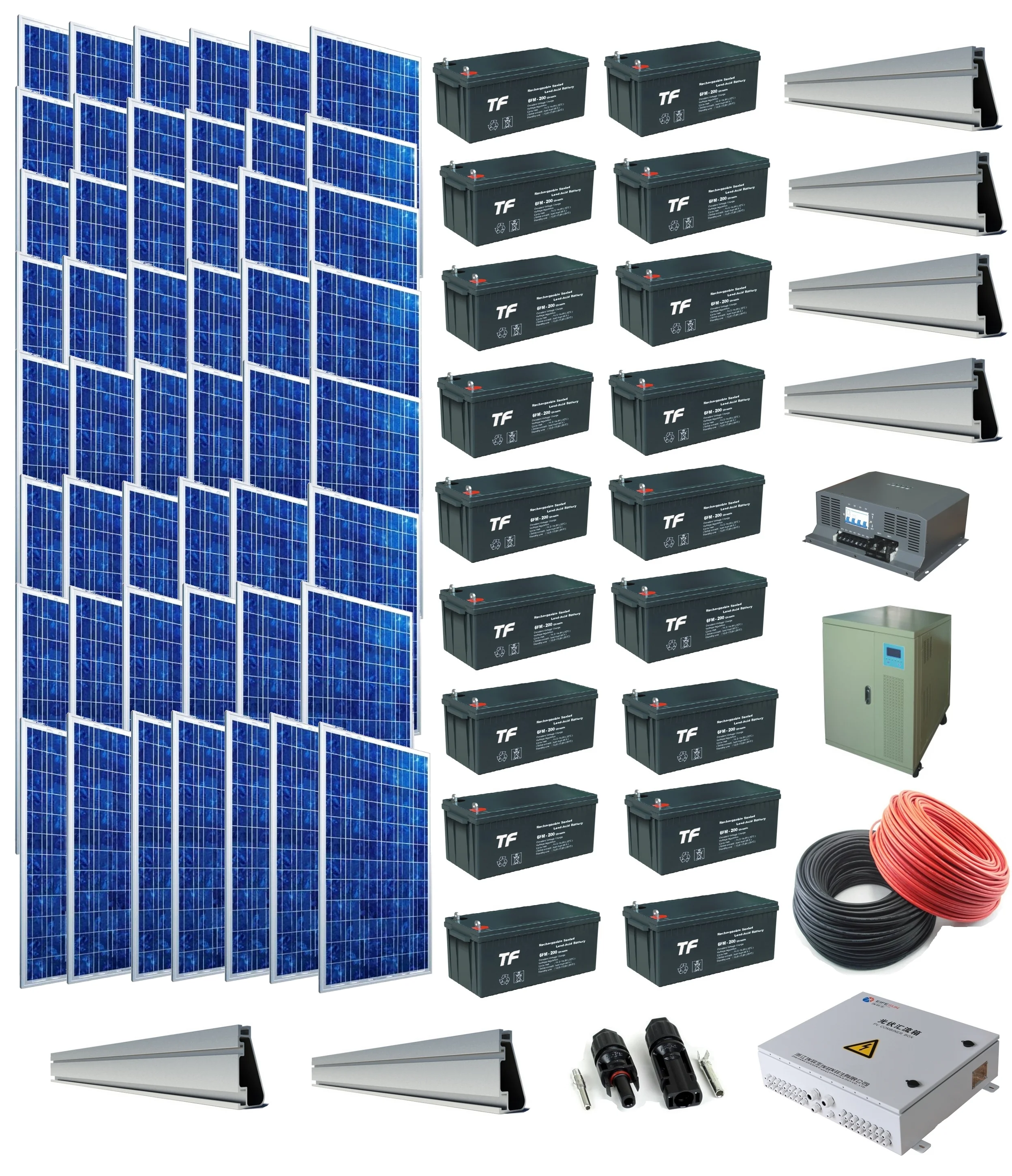

System Includes:
| QTY | ITEM | TYPE |
| 310-Watt Renesola JC310M-24/Ab Virtus II Poly Solar Panel | Solar Panel | |
| Pure Sine Wave 15kW/120V Inverter | Inverter | |
| MPPT 120V/100A Charge Controller | Controller | |
| IronRidge XR100 Solar Racking Kit *(Custom Fitted to your needs) | Racking | |
| TF 12V/200AH Fully Sealed Solar Power Lead Acid Battery [Gel Battery Option] | Battery | |
| 100-Meters 12mm2 Black & Red Solar Cable | Cables | |
| Solar 12mm2 Battery Connector Cable | Cables | |
| PV Combiner H6T-120V | Combiner Box |
![TF 12V/200AH Fully Sealed Solar Power Lead Acid Battery [Gel Battery Option]](https://images.squarespace-cdn.com/content/v1/54d36ac7e4b08a196ac7572d/1444709599605-T399J9LKUQF2YTMLE7M8/Battery2.jpg)
Solar Panel Specifications:
| 310 Watts | |
| 0~+5 | |
| 16.5% | |
| 6.80A | |
| 37.0V | |
| 8.80A | |
| 45.0V | |
| 156x156mm Monocrystalline | |
| High Transmission, Low Iron, Tempered Glass | |
| Anodized Aluminum Alloy | |
| IP65/67 Rated with Bypass Diodes | |
| -40°C~+85°C | |
| 1956 x 992 x 40mm | |
| 27kg |

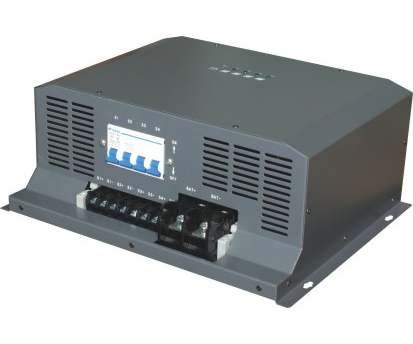

Pure Sine Wave Inverter + Controller Specifications:
| 15kw/120V | |
| 100A/120V | |
| 90%-95% | |
| 120V, 220V, 230V, 240V (optional) | |
| 590 x 470 x 730mm |
Battery Specifications:
| 12V/200AH | |
| Lead Acid Battery (If Need Gel, Let us Know) | |
| 6-7 Years | |
| 10 Pieces in series as a string | |
| 522 x 238 x 218mm |
If you have any questions about this system, please feel free to call us at (765) 233-2419 or email us at info@windsoleil.com
